905-40W-PL

Four-Junction Pulsed Laser Chip

Four-junction epitaxy · High emitting density | A rugged source for automotive LiDAR and industrial automation.

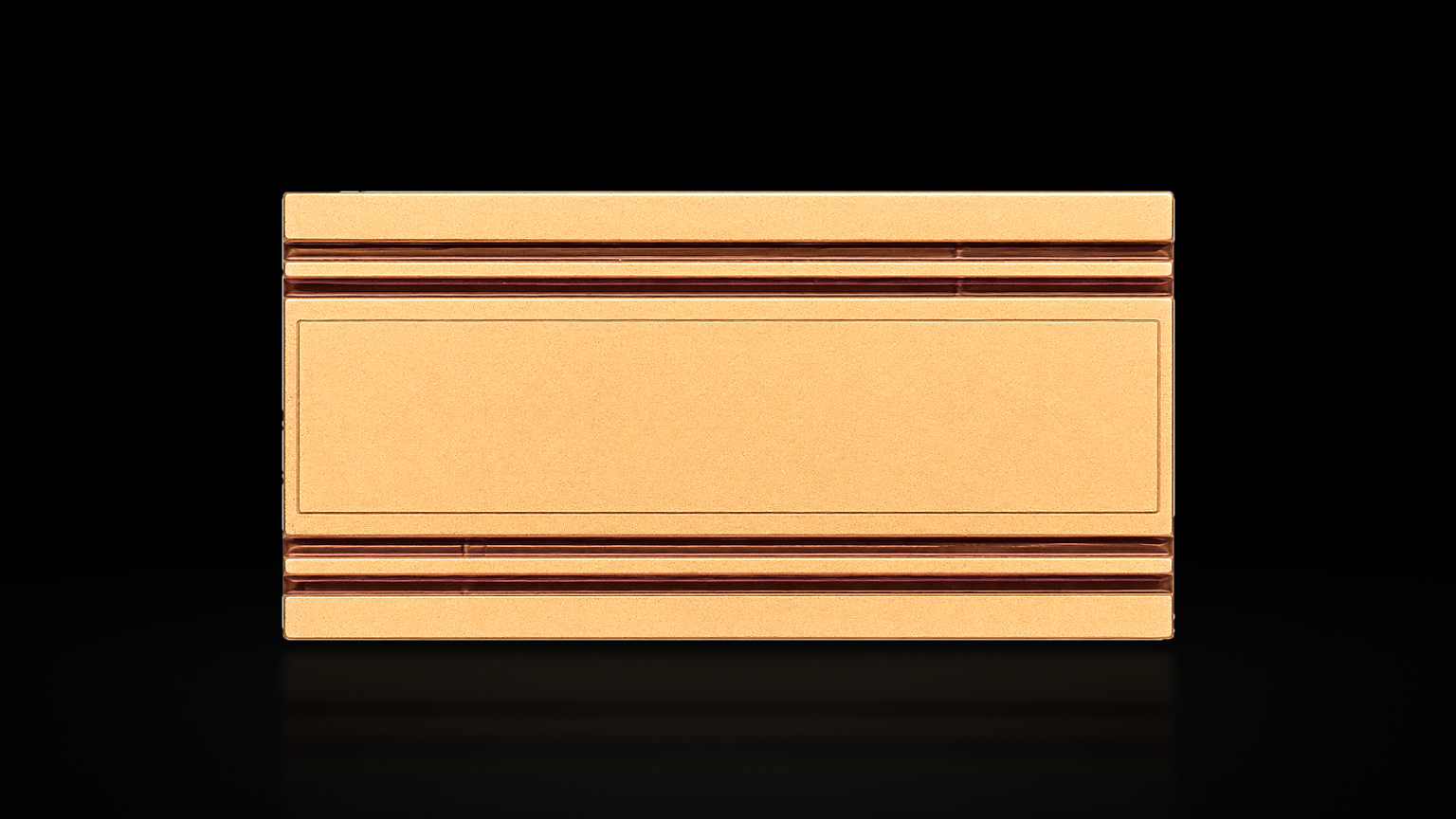

905-40W-PL product photograph
Wavelength905 ± 10 nm
Output40 W
Operating modePulsed
Spectral width7 nm FWHM
Pulse / duty100 ns / 0.1%

01 / Product introduction

Product introduction

This 905 nm four-junction pulsed laser chip stacks four active regions vertically, delivering roughly four times the peak pulse power of a conventional single-junction chip from a very small emitting area. High power density, high conversion efficiency, nanosecond response and excellent high-temperature stability make it widely applicable in automotive ToF LiDAR and industrial automation sensing.

02 / Core application scenarios

Core application scenarios

01
Automotive and autonomous-driving LiDARHigh-precision time-of-flight (ToF) automotive LiDAR and obstacle-avoidance systems.
02
Industrial automation and roboticsIndustrial AMR/AGV navigation, automated machine control and machine-vision control.
03
Precision ranging and securityHandheld and fixed high-precision laser rangefinders, UAV ranging and perimeter security sensing.

03 / Core advantages

Core advantages

01
Four-junction power densityFour vertically stacked active regions deliver 40 W peak pulse power from a 40 μm emitting width, extending sensing range and penetration.
02
Nanosecond pulse operation100 ns pulses at 0.1% duty cycle provide the time resolution needed for accurate depth measurement.
03
Excellent beam geometryDivergence of 22° fast axis and 8° slow axis with good spot uniformity supports efficient lens shaping and system collimation.
04
Wide-temperature reliabilityOptimised facet passivation and wafer processing built for demanding industrial and automotive environments across −15 to +85 °C.

04 / Core technical specifications

Core technical specifications

Wavelength
905 ± 10 nm
Output
40 W
Operating mode
Pulsed
Spectral width
7 nm FWHM
Pulse / duty
100 ns / 0.1%
Drive
10 A / 18 V
Thermal control
-15–85 °C
Package
Four-Junction Pulsed Laser Chip
Output interface
Free-space / package dependent

04 / Project integration

Integration essentials

Drive
10 A / 18 V
Thermal control
-15–85 °C
Package
Four-Junction Pulsed Laser Chip
Output interface
Free-space / package dependent
