CS0625V20A/R59A

Cooled VLWIR Detector

CS0625V20A/R59A packages cooled infrared sensitivity for compact, system-ready OEM integration.

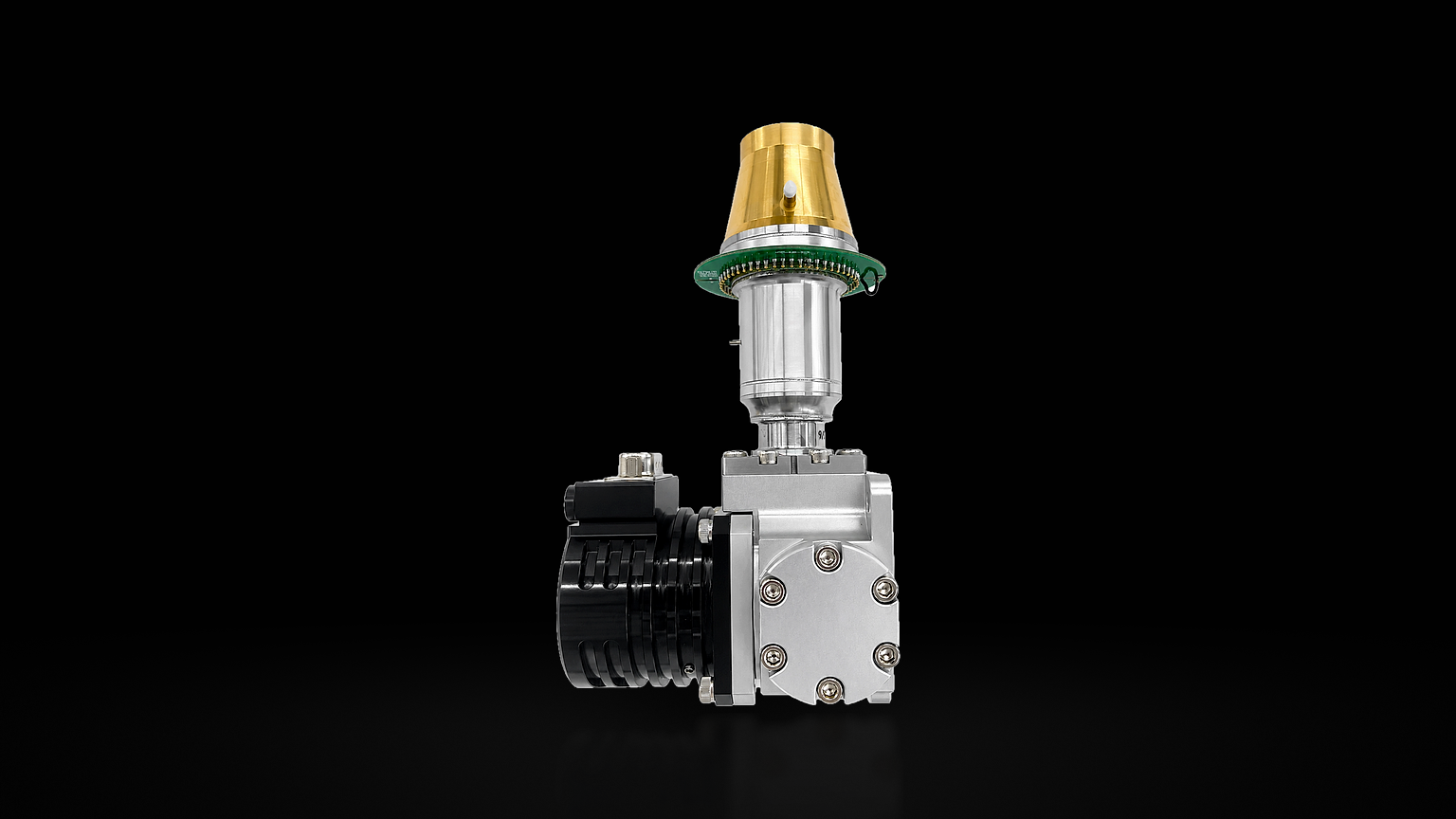

CS0625V20A/R59A product photograph
Resolution640 × 512
Pixel pitch25 μm
Spectral range7.7–12.5 μm
NETD≤30 mK
Frame rate100 Hz

01 / Product introduction

Product introduction

CS0625V20A/R59A is a cooled vlwir detector combining 640 × 512 resolution, 25 μm pixels and a 7.7–12.5 μm response band. The selected fields emphasize image performance, cooling behavior and physical integration rather than a full specification table.

02 / Core application scenarios

Core application scenarios

01
Industrial inspection
02
Gas and process sensing
03
Scientific imaging

03 / Core advantages

Core advantages

01
Cooled sensitivityA controlled detector temperature supports stable low-noise infrared acquisition.
02
Configuration choiceResolution, optics and cooler configuration are exposed as one procurement decision set.
03
OEM-ready packageElectrical, mechanical and cooldown fields make early system-fit review more direct.

04 / Core technical specifications

Core technical specifications

Resolution
640 × 512
Pixel pitch
25 μm
Spectral range
7.7–12.5 μm
NETD
≤30 mK
Frame rate
100 Hz
F-number
F/2
Cooldown
≤8 min
Power
≤36 W peak
Weight
≤750 g

04 / Project integration

Integration essentials

F-number
F/2
Cooldown
≤8 min
Power
≤36 W peak
Weight
≤750 g
