Infrared Detector Systems

G615-F1.2

Narrowband MWIR Detector System

G615-F1.2 delivers cooled MWIR imaging as a complete detector-system platform.

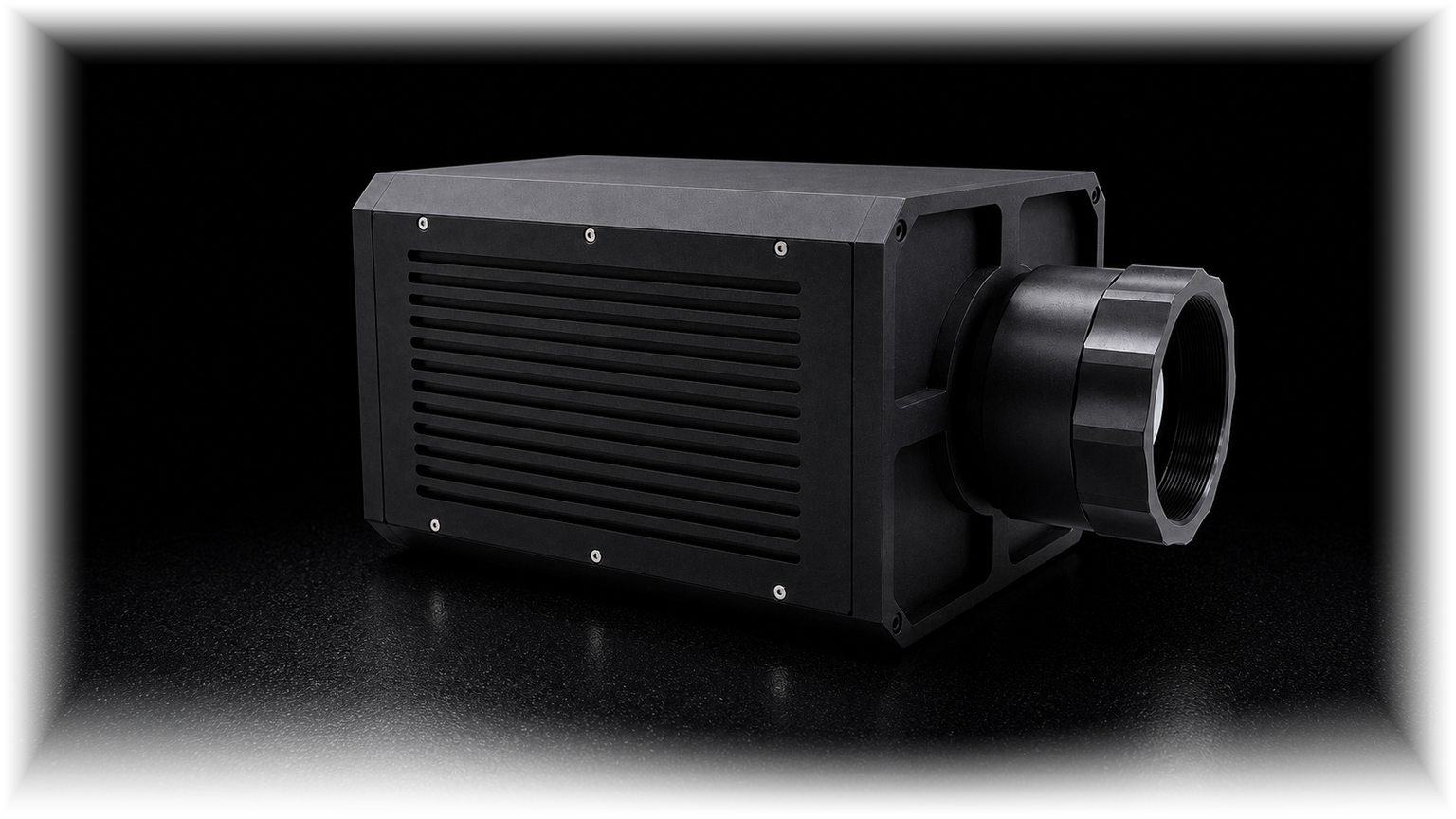

G615-F1.2 product photograph
Resolution640 × 512
Pixel pitch15 μm
Spectral range3.15–3.55 μm
NETD≤20 mK
F-numberF/1.2

01 / Product introduction

Product introduction

G615-F1.2 is a narrowband mwir detector system combining 640 × 512 imaging, 15 μm pixels and a 3.15–3.55 μm response band. The page emphasizes application value, optical fit and system interfaces instead of exposing a dense engineering table.

02 / Core application scenarios

Core application scenarios

01
Gas leak imaging
02
Industrial process monitoring
03
Long-range thermal imaging

03 / Core advantages

Core advantages

01
System-level readinessDetector, cooling, optics and electronics are delivered in one evaluated architecture.
02
Defined optical fitF-number and spectral band clarify the intended imaging task.
03
OEM connectivityControl, video and power interfaces are visible before detailed engineering review.

04 / Core technical specifications

Core technical specifications

Resolution
640 × 512
Pixel pitch
15 μm
Spectral range
3.15–3.55 μm
NETD
≤20 mK
F-number
F/1.2
Input
12 VDC
Control
RS422
Video outputs
Camera Link / PAL / SDI
Envelope
205 × 105 × 90 mm

04 / Project integration

Integration essentials

Input
12 VDC
Control
RS422
Video outputs
Camera Link / PAL / SDI
Envelope
205 × 105 × 90 mm
